TechnicalSpecifications

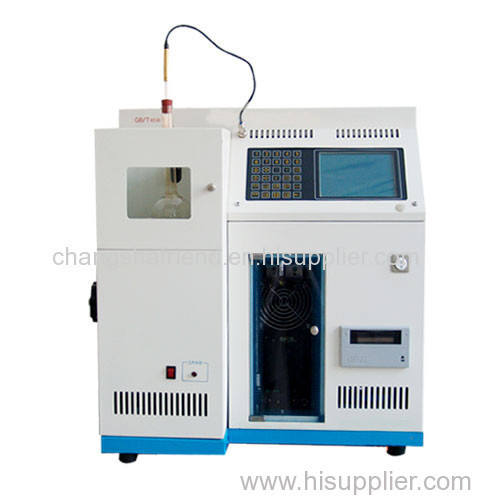

Crude oil distillation range tester automatically Applied standards:GB/T2538-88, instrument device complies SH/T0121 "measuring devicedistillation range of petroleum products and technical conditions"provisions.Modular structure for a single tube, using low-voltage directdistillation centralized Heating method , built-in small cycles chunks coldbath Temperature, the United States imported infrared cylinder reading system,automatic Temperature recovery room, multi-chip master unit, and hasauto-complete real-time Detection of atmospheric pressure automatic correctionmake it a powerful, stable and reliable, simple operation, energy savingFunction Features.

FunctionFeatures

A large-screenLCD, the software prompts
2, the entire Chinese operating system platforms, multiple operating modes areavailable for customers to use programming
3, using the U.S. imported infrared cylinder XEC reading system, highresolution, literacy scale, high precision, good stability
4, using a button to set the calibration system, user-friendly design,completely solve the traditional equipment calibration operation complicatedprocess tracking
5, using the U.S. HP Precision tracking systems, rail wear, excellent drive,tracking amplitude can be controlled 0.1ml
4, the instrument can be upgraded to a computer controlled by computer (usuallythe LCD screen, you can not upgrade to a computer), the distillation processdynamic display relevant parameters for automatic optimization of heating power
5, the new document provides methods and call functions, sufficient storagespace for storing test record 6, cold baths and bath cylinder Temperature usingintelligent control system, providing the necessary conditions for sevenexperimental groups, and automatically determine the termination conditionissued by Test results, printable reports
8, the software provided with the anti-overshoot system, which can effectivelyprevent the gas bumps case
9, according to customer requirements, upgrade the computer wired control orwireless control (non-standard, need to customize)

TechnicalSpecification

1, Operatingenvironment;: Temperature 0 ~ 60 ℃ Relativehumidity: ≤ 80%

2, Display:color LCD touch screen.

3, Distillingrate: 4 ~ 5mL/min

4, cold bath Measuring range: -10 ~ +70 ℃

5, Measuring range: room Temperature ~+400 ℃, resolution: 0.1 ℃
6, The volume Detection range: 0 ~ 100mL, resolution 0.1mL

7, Temperaturecomponents: Import Detection element

8, using thepower AC220V 50Hz, total power: 1.5kw
